SUS stainless steel 12 keys matrix keypad with ribbon cables

FOB Reference Price:Get Latest Price
  • 100 - 499 Pieces
    US $17.00
  • >=500 Pieces
    US $16.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SINIWO
Model Number:
B720
Application:
Home Appliance, ATM,Kiosk,Telephone
Keypad Button Material:
Metal
Material:
Stainless Steel
Style:
Matrix Keypad
Connection:
Pin Header,XH plug,USB,PS2,RS232,RS485
Certificate:
CE,ISO 9001
Levels of Protection:
IP67
Vandal Resistence:
YES
Function:
Access control,door lock,cabinet lock
Button Life:
5 million
Operating Temperature:
-25~+65℃
Supply Ability
Supply Ability:
2000000 Piece/Pieces per Year supply ability 2000000pcs for matrix keypad
Packaging & Delivery
Packaging Details
matrix keypad
packing:80pcs/ctn
carton demension: 420*350*115mm
Port
Ningbo/Shanghai
Lead Time :
25 DAYS AFTER PAYMENT RELEASED
SUS stainless steel 12 keys matrix keypad with ribbon cables
Product Description



Quick Details:

1.  12  Keys stainless steel keypad, Dot  matrix keypad .

2.  carbon -on-gold key switch technology .

3.  rear mounting/bracket mounting.

Descriptions:

1. 12keys IP65 dynamic compact format vandal proof ,Industrial numeric keypad with industrial PCB electronics .

2.  Industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise .

3.  Ease of installation and maintenance.

Special Features:

1. Specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.

2.  This keypad with  willful destruction, vandal-proof, against corrosion, weather-proof especially under

extreme climatic conditions, water proof/dirt proof, operation under hostile environments.

Applications:

A. unsupervised or semi-supervised positions of varied access  control systems,security system , household  applications.

Specifications:

MECHANICAL DATA

Keys

12 Keys

Switching Material

Carbon-on-gold key switch technology PCB

Actuation Force

0.6 N+/0.1N(pressure point)

Frame/Keys Materials

ABS Plastic

Dimensions

72.5mm*93.5mm(L x W)

G.W.

180g approx

LED color

Customized

Key Size

14.0mm*14.0mm

Rubber Life

More than 500000 cycles



ELECTRICAL DATA

Power Supply Voltage

3V DC

Current Rating

Appox. 45mA

Power Comsumption

Under 300mW for operation,under 200mW for non-operation

Contact Resistence

200 Ohms(Max)

Electrical Lifetime

>5 years

Interface

Male pin out connector

OS

All Windows,Linux,Unix,Mac OSX



Environment Adaptability

Operating Temperature

-20  to + 75

Storage Temperature

-3 5  to + 85

Operating RH

30-90% RH

Atmospheric Pressure

60-106Kpa



Reliability

Protection Level

IP65(Front Panel)

Vandal Resistant

IK09

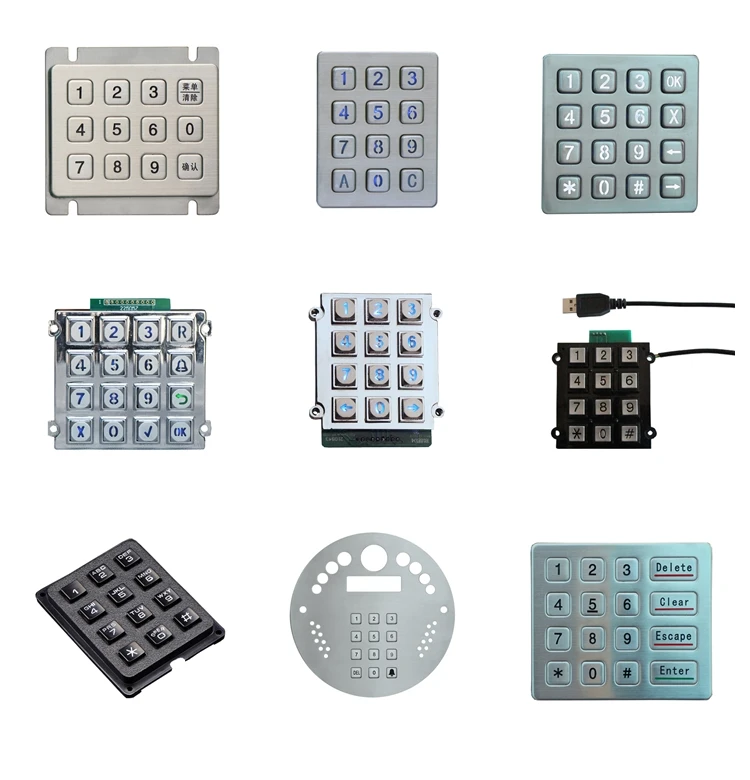

Product Picture



1.Keypad Applications

undefined

2.Customized Keypad references as for Backlighting Keypad

undefined

3.Keypad Choosing Connection Interfaces

undefined


Packing Display



Multifunctional coal mine colorful radio handset usb telephone handset with CE certificate

undefined





Application Area



Just Some Application Area we serve:

Detension Centers Halfway Houses
Hospitals Jails|Inmate
Correctional facilities Drug and Alcohol Rehabilitations
Prisons Transitional Housing
Behavioral health facilities salvation Army
Re-entry facilities Substance Abuse Rehabilitations
Train Stations Government Facilities
Mining Area Oil and Marine

undefined




Company Information



Company Profile

Yuyao Xianglong Communication Industrial Co., Ltd. was founded in 2005, located in Yuyao City, Zhejiang Province, Xiao Dong Industrial Park, is a production and sales of outdoor phone accessories and machine-based manufacturing company. Building area of 5,000 square meters, mold development,rubber molding,injection molding, assembly as one of the modes of production. Advanced machinery and equipment, modern production line, the parts per day to 2,000 sets.
     Founded five years, the main industry to the public telephone accessories. 90% of the parts of the public telephone accessories by the company on their own production. Overall competitiveness and value for money in a leading position in the industry. With the continuous enhancement of competitiveness. From 2007 to mold development, injection molding,rubber products, industrial phone. Formed by phone accessories division, ODM processing division, Division of Industrial Phones three common development mode. Special phone accessories and the whole a better competitive situation.
     In order to better grasp the dynamic of a seller is market, in order to better service customers at home and abroad. The company set up agents in Thailand in 2006. Understand and master the latest product information. At present, the customer back to a single rate of more than 95% products are mainly exported to North America, Western Europe, Southeast Asia and other regions, with the company is business development and competitiveness constantly enhance. The company is business has developed to globalization.
     The spirit of the principle of "quality first, reputation first", comprehensively improving production and quality management. From product design, raw material procurement, production and test all aspects in accordance with the ISO9001: 2008 standards to ensure products of good quality; rely on sophisticated production equipment and an outstanding technical backbone and sales force, the initiative to understand customer needs, the constant breakthroughs in production, design technology, develop new products based on domestic and world.
     We sincerely hope that the the Xianglong products to the vast number of old and new customers more cost-effective and competitive industrial communication accessories and machine. The Xianglong together with our customers, describe the field of industrial communication for a better tomorrow!



Factory Show:

Multifunctional coal mine colorful radio handset usb telephone handset with CE certificate



Our Team:



Multifunctional coal mine colorful radio handset usb telephone handset with CE certificate


Contact US



Attn:Spring Ding

Whatsapp:86-13858299873

Skype:yyxlongzhu

QQ:2851335073

Tel:86-0574-22707955

Fax:86-0574-22709788

Mob:86-13858299873

undefined


FAQ



1. Q: How long is the warranty period?
A:  12  months .


2. Q: How to pay?
A:  TT&Western Union&Paypal


3. Q: How to pay the deposit?
A:  Small order,100% Payment in advance.
    For much bigger order,50% deposit advance,50% balance before shipping.


4. Q: How to ensure the quality of the products?
A: Every piece of our products will be under strict and repeated tests before delivery.And representative inspector will be welcomed.


5. Q: How is the shipping?
A:  1000 pcs or more within 30 days and samples will be shipped within 2-5 days.


6. Q: How will you deliver the products?
A: We can deliver by express, by sea, by air or at you request.


7. Q: When will I get my products after delivery?
A: It varies from different places. We will recommend the best and fastest shipping for you.


8. Q: How is the inventory of your company?
A: We keep a large stock of goods to ensure our prompt delivery.


9.Q:  Do you accept customized keypad  ?
A: Yes, OEM and ODM are available for us, Our R&D team work in this field since 2005.
